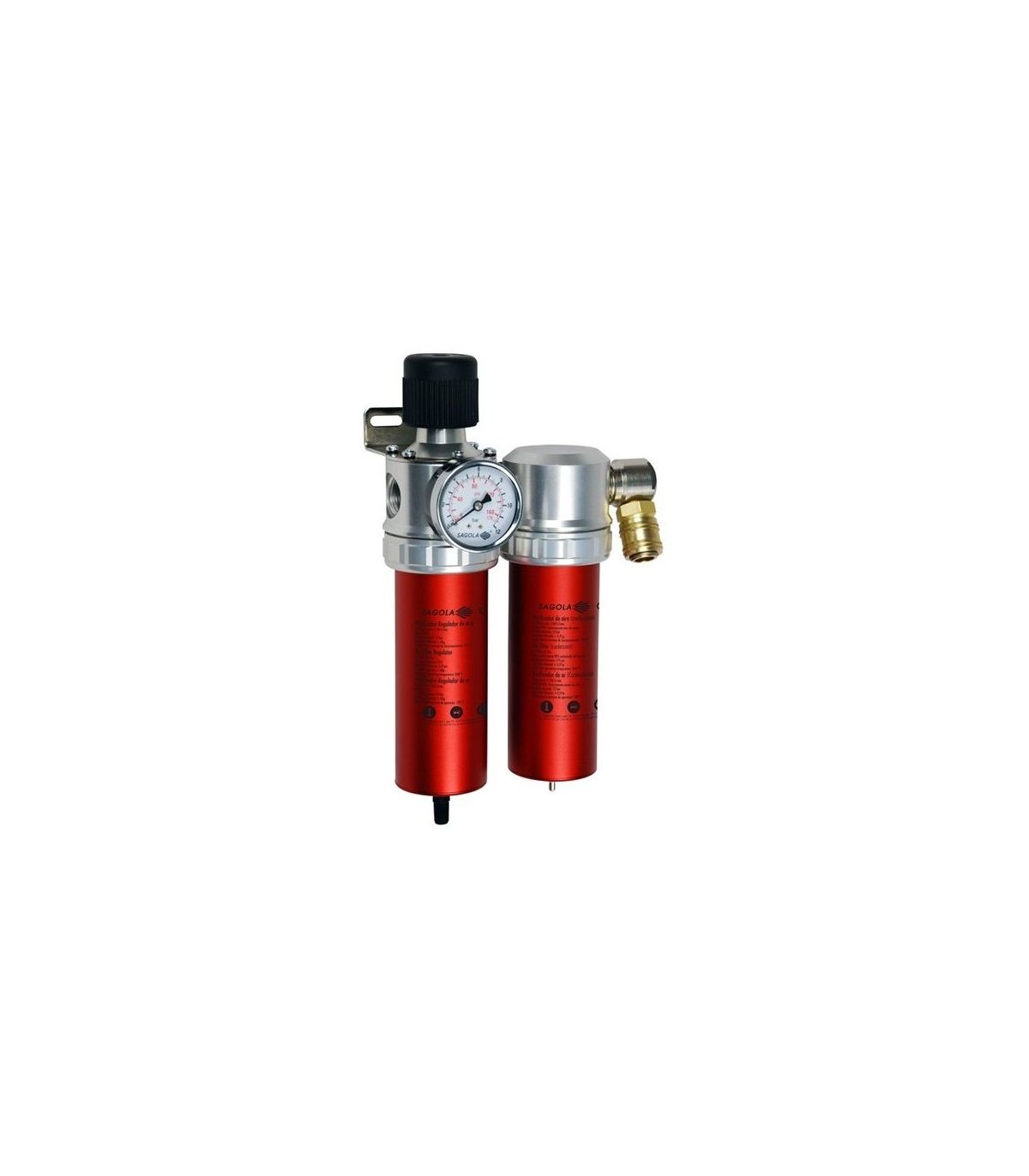

Sagola 4220 Plus filter for filtering water, oil and solid particles. Filter for professional cabins up to 1700L/Min. Double stage and automatic purge. Second submicron filtering (0.01 microns).
The Sagola 4220 Plus filter guarantees maximum air quality in your painting booth. It also guarantees a minimum pressure loss in line.
Robust design and high effectiveness for long-term performance. Very easy handling. High precision regulators. Manufactured from a solid block of aluminum.

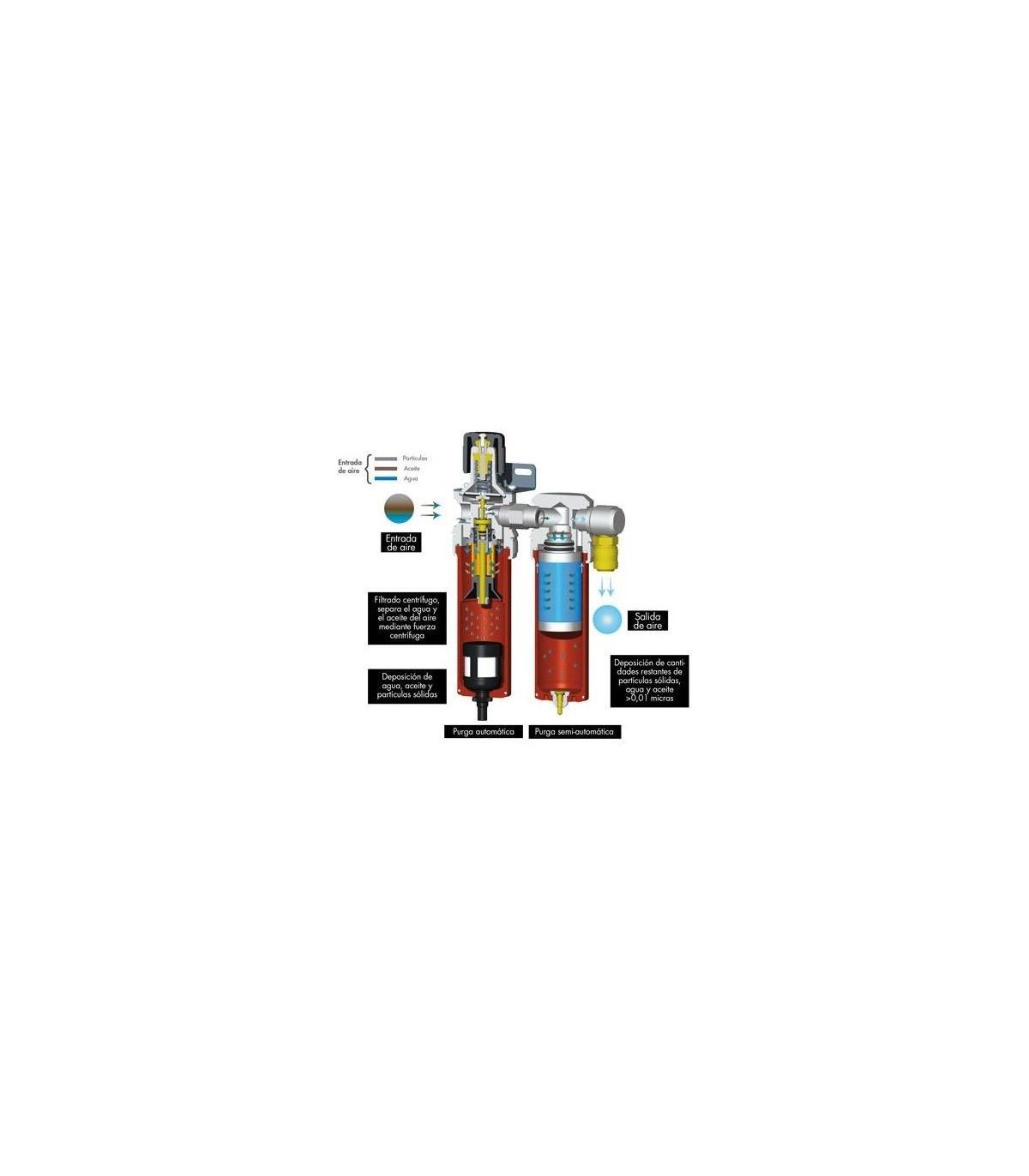

Process: 1st filtration (water, oil and particles) - 2nd filtration (submicron 0.01 microns)
Characteristics:
Dimensions 279 x 117 x 186 mm
Weight 2002 gr.
Bronze prefilter 20 microns
Coalescing filter 0.01 Microns
Automatic + semi-automatic purge type
Air flow 1700 L/min
Maximum working pressure 12 bar
1/2" air inlet
SAGOLA US Mil quick plug
